Products

Lasers

For overhead atmospheric, downstage edge, and laser mapping effects

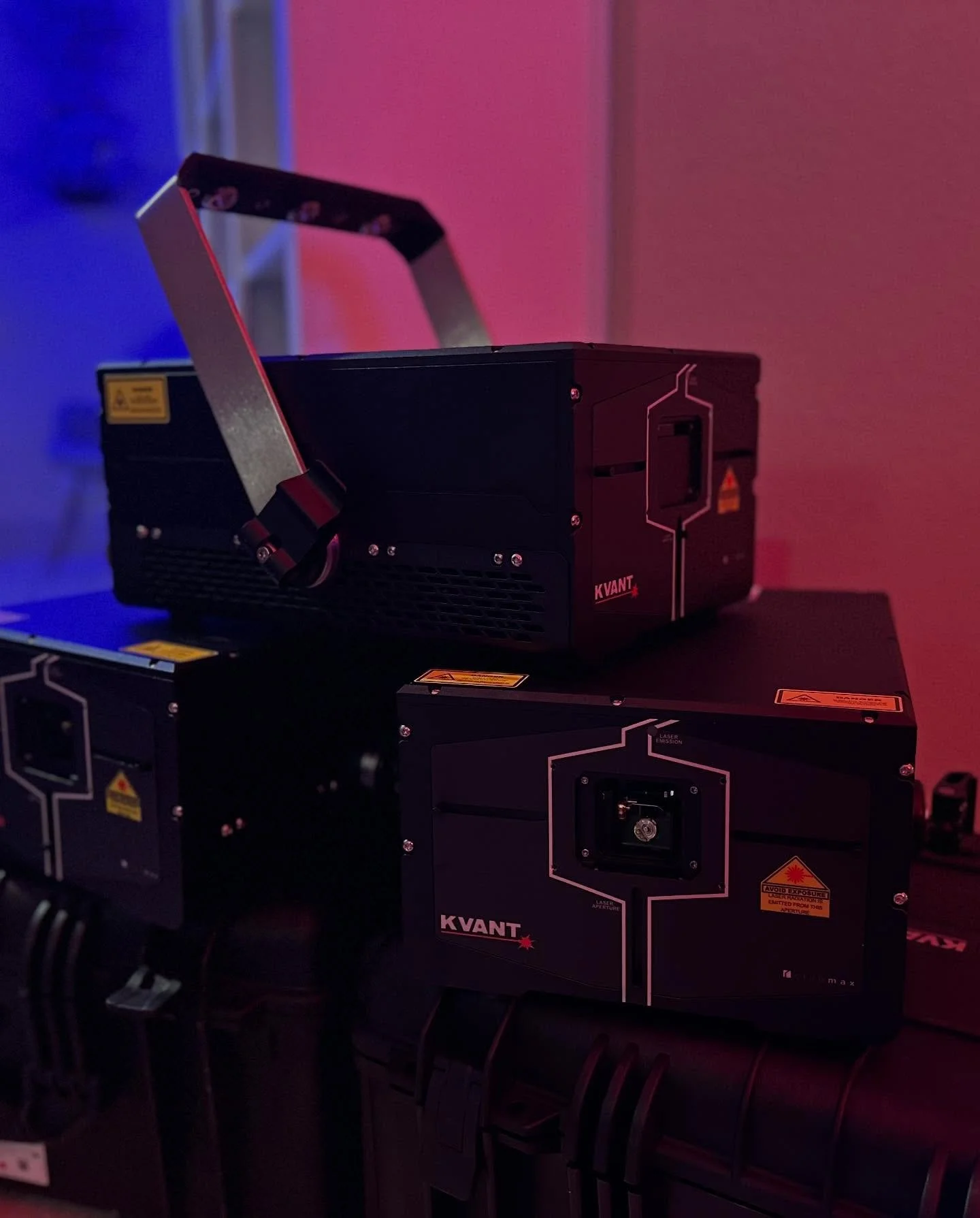

  • Kvant Clubmax 24 IP65

    Lightweight and waterproof, this 24-watt laser unit is safe for use in rainy and wet environments. Fitted with motorized dichroic filters for easy beam alignment.

  • Source | IP-rating | Type: Semiconductor laser diode | IP65 | Full-colour RGB laser projector

    Suitability:Large-scale indoor and large outdoor laser displays [atmospheric, abstract, text, animations]

    System control:FB4-SK [Ethernet, ArtNet, DMX | PC, Lighting Console or Autoplay]

    Compliant with:EN 60825-1 [tested by TÜV SÜD], FDA

    Weight [kg]:19.5

    Size [WxHxD, mm]:265 x 179 x 395

    Guaranteed opt. output:22 watts

    Installed modules R|G|B[W]:6|8|10

    Wavelengths [nm, ±5nm]:638|525|455

    Beam size [mm]:5 x 7

    Beam divergence [mrad]:
    1.1 [full angle, averaged value, note B]

    Analogue modulation [kHz]: 100

    X-Y scanners:Saturn 5 | 48 kpps @ 8°, max. scanning angle 50° on both axes

    Power requirements [V] | Input:100-240/50-60Hz | Neutrik powerCON TRUE1
    Max. power consumption [VA]:1200

    Operation temperature [°C]:5-28 [-20 to +35 when installed in Monsoon protection enclosure with AC unit]

Kvant Clubmax 24 IP65 Kvant Clubmax 24 IP65

Clubmax 24W IP65

  • LDW Triumph 60 IP65

    Powerful and robust, this 60-watt laser unit is safe for use in rainy and wet environments. Fitted with motorized dichroic filters for easy beam alignment. It is suitable for large concerts,  club venues, festivals and outdoor  installations

  • Source | IP-rating | Type: Semiconductor laser diode | IP65 | Full-color RGB laser projector

    Suitability:Large-scale indoor and large outdoor laser displays [atmospheric, abstract, text, animations]

    System control:FB4-SK [Ethernet, ArtNet, DMX | PC, Lighting Console or Autoplay]

    Compliant with:FDA/CDRH, CE

    Weight [kg]:43

    Size [LxWxH, mm]:520 × 390 × 265

    Guaranteed opt. output:60 watts

    Installed modules R|G|B[W]: 16.5|19.5|24

    Wavelengths [nm, ±5nm]:638|525|450

    Beam size [mm]:10 x 7.5

    Beam divergence [mrad]:
    1.3 [full angle, averaged value]

    Analogue modulation [kHz]: 50

    X-Y scanners: EMS9000 | 30 kpps @ 8°, max. scanning angle 48° on both axes

    Power requirements [V] | Input:110-240/50-60Hz | Neutrik powerCON TRUE1
    Max. power consumption [W]:1200

    Thermal Control:
    Active Cooling / Heating by TEC Peltier Elements
    Ventilation : 60mm IP68 fan * 7

LDW Triumph 60W Laser LDW Triumph 60W Laser

Triumph 60W IP65

Fog FX

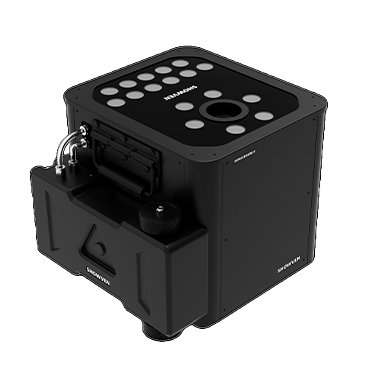

Sonic Boom II (Lighted CO2 Jet Burst Simulator) Sonic Boom II (Lighted CO2 Jet Burst Simulator)
Sonic Boom II (Lighted CO2 Jet Burst Simulator)

  • SONICBOOM II is a compact yet powerful CO2 Jet effects simulator, it is with stainless steel enclosure and IPX3 level waterproof design, can be used in heavy rain or high moisture environment. With fast pressure rebuild technology and built-in high pressure pump it can achieve fast bursts, distinguishing it from similar products that require long shot intervals.

    • Dimension: 346x305x291mm

    • Weight: 23kg

    • Voltage and Fuse: AC220-240V, 50/60Hz, 25A/250V;AC100-120V, 50/60Hz, 25A/250V

    • Work Power: 3000W/1800W (220V version); 2400W/1800W (110V version)

    • Max Output Height: 12m

    • LED power: 9W*17PCS

    • Max Continuous Output Duration: 8s

    • Smoke Output: 90000cuft/min

    • Tank Capacity: 2L built-in tank

    • Fluid Consumption Rate: 400ml/min

    • DMX Channels: 1/11 channel switchable

    • Fuels: FX-S, FX-M

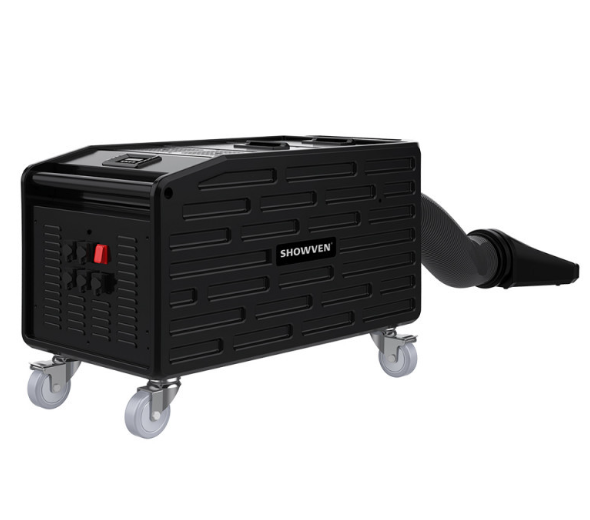

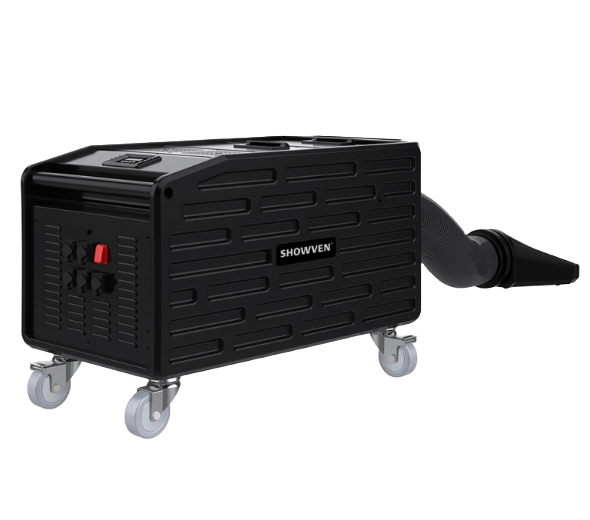

Creeper AQ Low-Lying Fog Machine Creeper AQ Low-Lying Fog Machine
Creeper AQ Low-Lying Fog Machine

  • Creeper AQ Low Fog Generator is a low lying ground fogger that does not use dry ice! Keep running this low ground fog machine continuously without worrying about refilling as required by a dry ice machine.

    • Model: Creeper AQ

    • Dension: 805×390×480mm

    • Weight: 35kg

    • Power: 2000W

    • Voltage: AC200-240V, 50-60Hz / AC100-120V, 50-60Hz

    • Heat-up Time：Appr. 1-2min

    • Fluid Tank Capacity：3.3L

    • Water Tank Capacity: 24L

    • DMX channels: DMX-512 / Remote control

    • Output Adjustable：1-100

    • Max. Fog Output: 15000 cuft/min

    • Max. Coverage：Appr. 300㎡

    • Max. Fluid Consumption.: Appr. 32ml/min

    • Max. Water Consumption：Appr. 375ml/min

    • Continuous Output：YES

    • Fully loaded Output Time：100+ min

Accessories

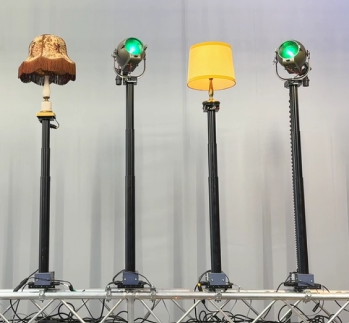

Wahlberg Lifting Columns Wahlberg Lifting Columns

Wahlberg DMX Lifting Column

  • With up to 45 kilos of pushing capacity it makes your possibilities countless. You can use the Lifting Column for many purposes to make elevating effects for your stage equipment.

    Mount the unit at different angles and push the equipment in different directions. For sideways mounting the load limit is 10 kilos.

    There is no risk of rotation/twisting since the shaft is fixed. It has been reinforced with an optimized motor housing that is designed for extra strength and stability. In other words, your equipment is very stable both in still positions and while in motion.

    You can easily daisy chain several Lifting Columns with the power in-out and DMX in-Out. This allows you to create advanced and dynamic movements with lifting columns working together in the same installation.

  • Lifting capacity -
    Pushing up: 45 kg (99.2 lbs)
    Pushing sideways: 10 kg (22 lb)
    Pulling up: Not recommended
    Lifting height: 97 cm (85-182 cm) (38.2 in (33.5-71.7 in))
    Lifting speed: 0-5,5 cm/s (0-2.2 in/s)
    Voltage: 100-240 VAC
    Frequency: 50-60 Hz
    Power consumption: 150 W (1,5-0,63A)
    Power inlet:Neutrik powerCON TRUE1 NACPX (F/M)
    DMX control signal: DMX 512 1990+DMX512A
    DMX channels: 6
    DMX control connection: 5 Pole XLR (F/M)
    Noise emission: ≈55 dB at 1 m (3.3 ft)
    Ambient temperature: 5-40 °C (41-104 °F)
    Mounting clamp: 4 x M12 Screw holes
    Motor: 24 VDC
    Duty cycle: 50% after 30 min. continually operation
    Weight: 14 kg (30.9 lbs)
    Dimensions: 296 x 178 x 850 mm (11.7 x 7 x33.5 in)
